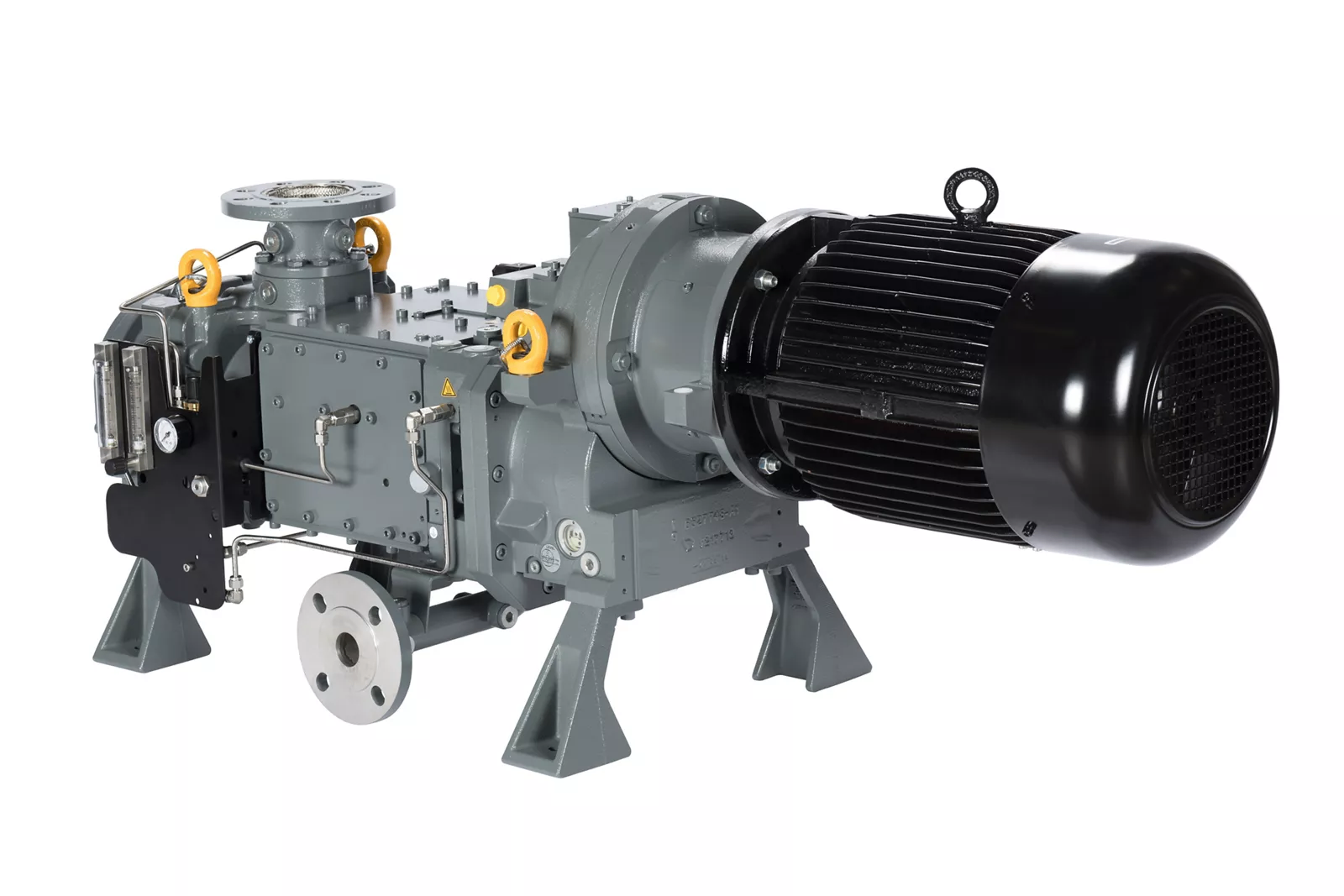

Direct and Indirect shell and tube heat exchanger cooling options available. Bare-shaft variants available for flexibility to meet any global Ex Proof standards.

The EDS range is suitable for a wide range of chemical applications including:

• Lithium Ion batteries

• Distillation applications

• Solar crystal pulling

• Fine Chemicals

• Pharmaceuticals

• Petrochemicals

• Flammable & corrosive gases

• Degassing

• Dewatering & Filtration

• Polymers & Plastics production

1. Technical specifications

2. 			Metric
   			Chemical
   			200	300
   Performance	Peak Pumping Speed	m3h-1	210	>280
   	Ultimate Pressure	mbar	<0.05	<0.01
   Full Load Power	@ ultimate pressure	kW	4.1	4.5
   	@ peak pumping load	kW	6.4	8.2
   Vacuum Connections	Inlet connection		DIN80/3"ANSI
   	Exhaust connection		DIN50/2"ANSI
   Cooling Water	Connection		G1/2" female
   	Flow	L/min-1	<8
   	Supply pressure (max)	bar	7
   	DP across pump (min)	bar	0.5
   	Temperature	oC	5-40
   Purge Gas	Connection		G1/4” female threads
   	Pressure	bar	2.5-6.9
   	SSP flow	lmin-1	<12
   	Gas Ballast flow*	lmin-1	0-50
   Operating data	Noise	dB(A)	<71
   	Operating Temperature	oC	-20 to +40
   	Exhaust Back Pressure (Max)**	mbar	1200
   	System IP rating		IP54
   	Lubrication (as supplied)		Extend 110

3. 	Imperial
   	Chemical
   	200	300
   CFM	124	>165
   Torr	<0.04	<0.008
   hp	5.5	6
   hp	8.6	11
   	DIN80/3" ANSI
   	DIN50/2" ANSI
   	G1/2" female
   Gal/min-1	<2.1
   psig	100
   psig	7.25
   oF	41-104
   	G1/4” female threads
   psig	36-100
   lmin-1	<12
   lmin-1	0-50
   dB(A)	<76
   oF	-4 to +104
   psia	17.4
   	IP54
   	Extend 110
